Otley Road Cycleway Phase 1 Review: Detailed Analysis – Harlow Chase to Cold Bath Road
Harlow Moor Road Junction

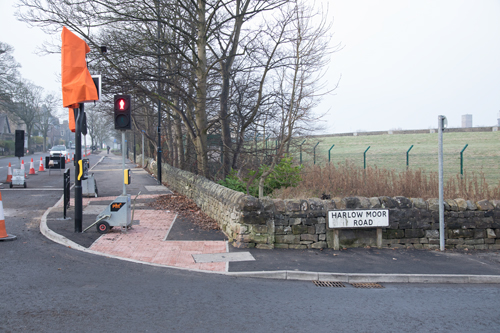

The space on the north west corner of Otley Road and Harlow Moor Road is very restricted – 1m50, which is woefully inadequate. It’s half the minimum width in the guidance. It should be looked at in the context, too, of Summary Principle 5 of the guidance, which states that schemes should be designed for thousands of cyclists a day.
North Yorkshire are negotiating to buy a corner of land from Yorkshire Water, to remedy the problem. It should never have come to this. If there had been consideration of the interests of those on foot and on bikes during the design, it would never have come to this.
Current Design
The design here for eastbound cyclists is a Toucan crossing, but it will involve a long delay as the lion’s share of the green time is for motor vehicles.
A Better Design

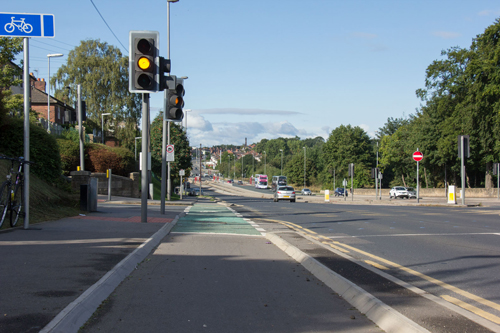

As indicated on the previous page, a better design would be to take back all the extra space allocated to motor vehicles, and create a kerb-protected cycle track, with green at the same time as motor vehicles, and a painted cycle lane across the junction to indicate priority over left-turning vehicles. See the example from the Leeds-Bradford Cycle Superhighway below.
Harlow Moor Road to Harlow Oval
East of Harlow Moor Road, it appears to be shared use. The width starts at 3m20, so there is space to segregate pedestrians and cyclists. (The width does gradually diminish).

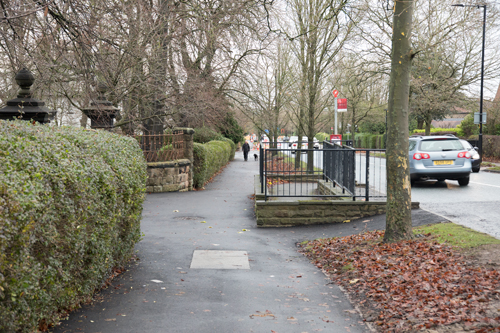

A substantial bus stop creates a pinch point. The bus stop should have been replaced with a different design that would take less space.

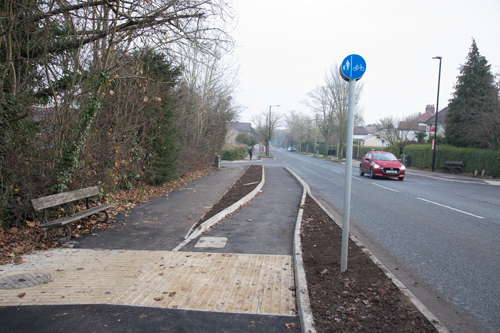

Cyclists have priority over traffic turning into or out of Harlow Oval.
The way it rejoins the footway is better here than at side roads on the other side of Otley Road.
Harlow Oval to Manor Drive

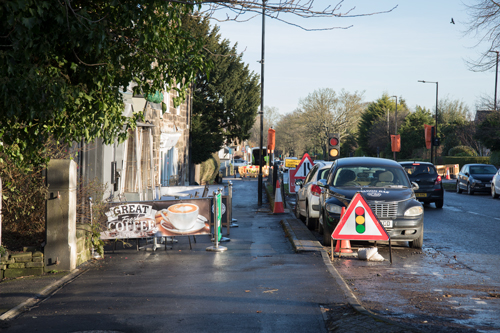

There’s another pinchpoint at Charlies Place café bar.
Current Design
We understand the sensitivity here, especially at a hard time for hospitality businesses, but leaving only a metre for walking and cycling is unacceptably poor.
A Better Design
A better design would have been to create a separate cycle track instead of the parking and grass verge. This has not been done, and is another instance of a refusal to take space from motor vehicles, whether moving or parked.
The separate cycle track would get a green signal at the same time as motor vehicles at the traffic lights at Manor Drive.
Manor Drive and the Coop

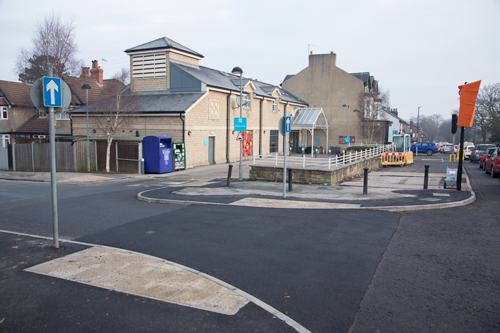

There’s a raised table at Manor Drive. No line painting has been done, but it seems likely that motor vehicles will have priority.
The width of the footway in front of the Coop is 4m75, so there is ample space for a separate footway and cycle track, ideally at different levels.

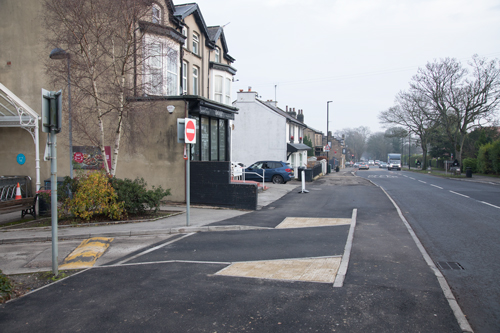

Cyclists have priority over the exit from the Coop car park, but are given just 1m23. Why so little space, lower than the Absolute Minimum in the guidance?
Approaching Cold Bath Road
Current Design

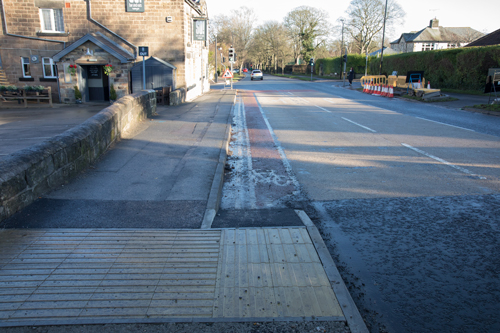

Approaching Cold Bath Road, the design is another unsatisfactory ‘caught between two stools’ effort. It looks as though cyclists can choose to stay on the footway, or use the lead-in lane to an Advanced Stop Zone.
The ramp down to the lead-in lane is just 93cm wide!
A Better Design
It would be far better to commit to one quality design, rather than asking cyclists to choose between safe or convenient.
A kerb-protected cycle track between the footway and the carriageway is what’s needed. There could be an early release for cyclists at the lights, and a painted cycle track across the junction to give priority for straight-on cyclists over turning traffic.
The next page has a summary of the minor and major issues raised in the analysis.
